HCCJTZ200 series
> > > > >
HCCJTZ200 Series
HCCJTZ200 Series Description:

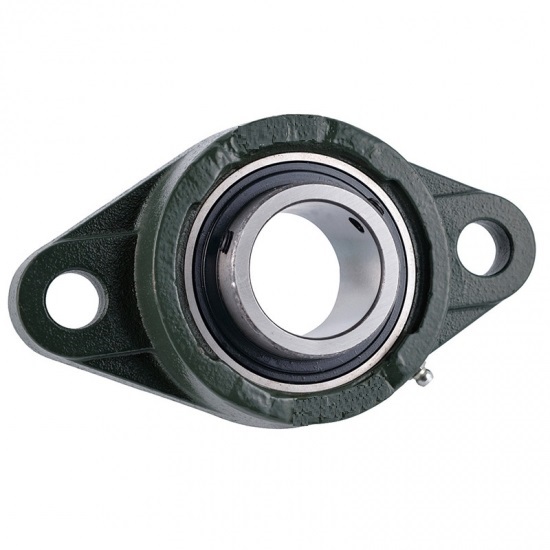

THB HCCJTZ200 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List
Bearing Uint
No.
Shaft Dia
(d) (mm)

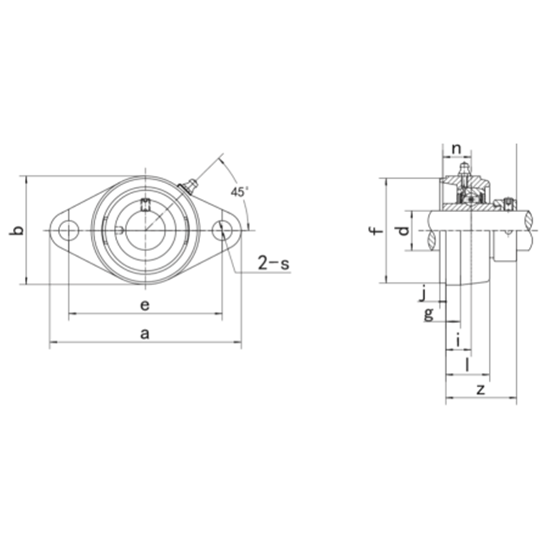

Dimensinons (a)
(mm)
Dimensinons (e)
(mm)
Dimensinons (i)
(mm)
Dimensinons (b)
(mm)
Dimensinons (J)
(mm)
Dimensinons (g)
(mm)
Dimensinons (l)
(mm)
Dimensinons (S)
(mm)
Dimensinons (f)
(mm)
Dimensinons (Z)
(mm)
Bolt UsedBearing No.Housing No.Housing (Wt)
(Kg)
HCCJTZ204 20 112.5 90 19 60.5 3.5 10 31.7 11.5 55 45.6 M10 HC204 CJTZ204 0.33
HCCJTZ205 25 124 99 19 70 3.5 12 26.5 11.5 60 45.9 M10 HC205 CJTZ205 0.39
HCCJTZ206 30 142 116.5 17 83 3 12 26 11.5 80 47.1 M10 HC206 CJTZ206 0.52
HCCJTZ207 35 155 130 17 94 4 12.5 26.5 14 90 49.3 M12 HC207 CJTZ207 0.67
HCCJTZ208 40 172 143.5 20 105 4 13 30.5 14 100 54.9 M12 HC208 CJTZ208 0.95
HCCJTZ209 45 180 148.5 20 111 4 13 31 14 105 54.9 M12 HC209 CJTZ209 1.05
HCCJTZ210 50 190 157 24 116 4 13 35 14 105 62.1 M12 HC210 CJTZ210 1.21
HCCJTZ212 60 238 202 30 138 4 16 42 18 130 76.8 M16 HC212 CJTZ212 1.9
Total 1 Page 8 Records
