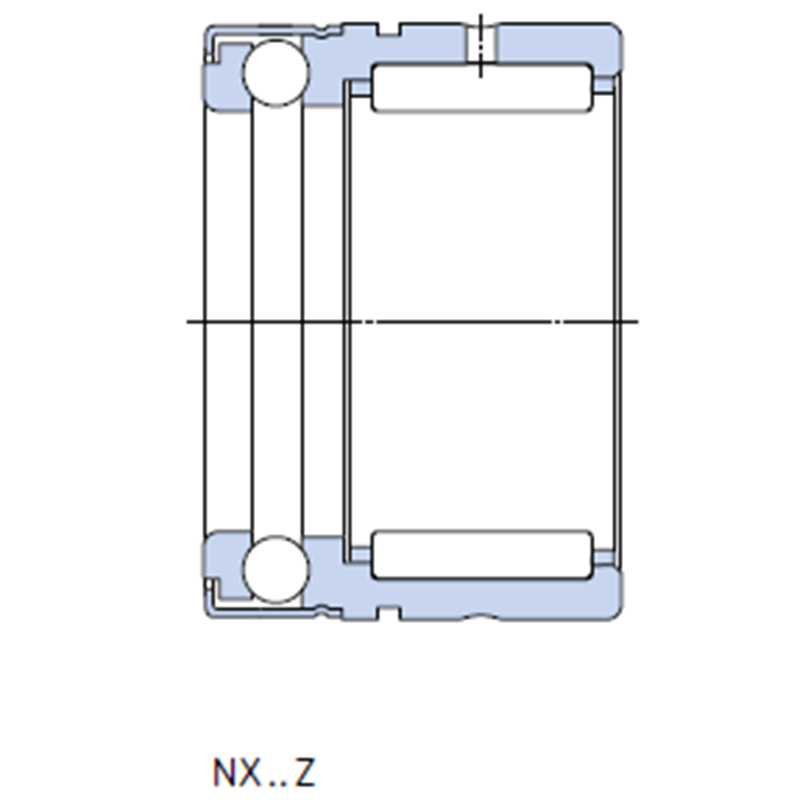

NX, NXZ series
NX, NXZ Series
NX, NXZ Series Description:
THB NK&NKS&RNA series Needle roller bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified roller/raceway profile prevents stress peaks to extend bearing service life. THB supplies needle roller bearings in many different designs, series and in a wide range of sizes, which make them appropriate for a wide variety of operating conditions and applications. Main applications: Automotive, construction and agriculture, inspection instruments, etc. Without inner ring is available.
Product List

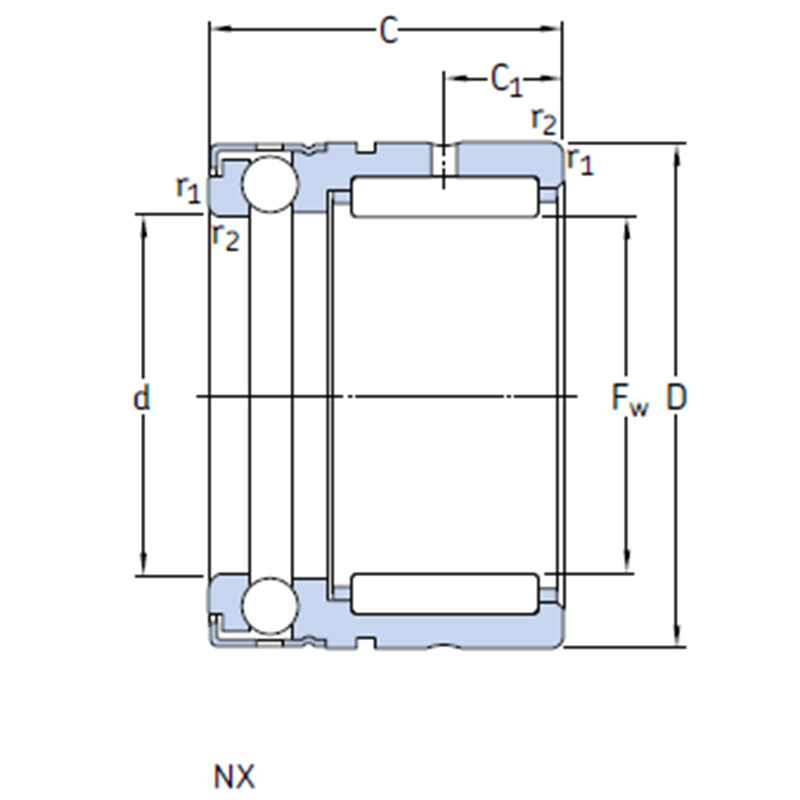

Part NumberPrincipal dimensions
(Fw) (mm)
Principal dimensions
(D) (mm)
Principal dimensions
(C) (mm)
Basic load ratings
(radial) (dynamic) (C
) (KN)
Basic load ratings
(radial) (static) (C0
) (KN)
Basic load ratings
(axial) (dynamic) (C
) (KN)
Basic load ratings
(static) (dynamic) (C
) (KN)
Fatigue load
limit (radial)
(Pu)
Fatigue load
limit (axial)
(Pu)
Min. load
factor (A)
(r/min)
Speed ratings
(Reference speed)
(r/min)
Speed ratings
(Limting speed)
(r/min)
Mass (kg)
NX 7 TN 7 14 18 2,75 2,7 3,38 4,9 0,28 0,18 0,13 10 000 11 000 0,014
NX 7 ZTN 7 14 18 2,75 2,7 3,38 4,9 0,28 0,18 0,13 10 000 6 000 0,014
NX 10 10 19 18 4,85 4,46 4,97 8,33 0,52 0,3 0,38 8 500 9 500 0,025
NX 10 Z 10 19 18 4,85 4,46 4,97 8,33 0,52 0,3 0,38 8 500 5 600 0,025
NX 12 12 21 18 5,28 5,1 5,16 9,46 0,6 0,35 0,48 8 000 9 000 0,028
NX 12 Z 12 21 18 5,28 5,1 5,16 9,46 0,6 0,35 0,48 8 000 5 300 0,028
NX 15 15 24 28 10,78 13,72 6,06 11,96 1,63 0,44 0,77 7 500 8 500 0,048
NX 15 Z 15 24 28 10,78 13,72 6,06 11,96 1,63 0,44 0,77 7 500 5 300 0,048
NX 17 17 26 28 11,86 16,27 6,24 13,13 1,92 0,49 0,93 7 000 8 500 0,053
NX 17 Z 17 26 28 11,86 16,27 6,24 13,13 1,92 0,49 0,93 7 000 5 000 0,053
Total 2 Page 18 Records 12
