NUKR Series Description:

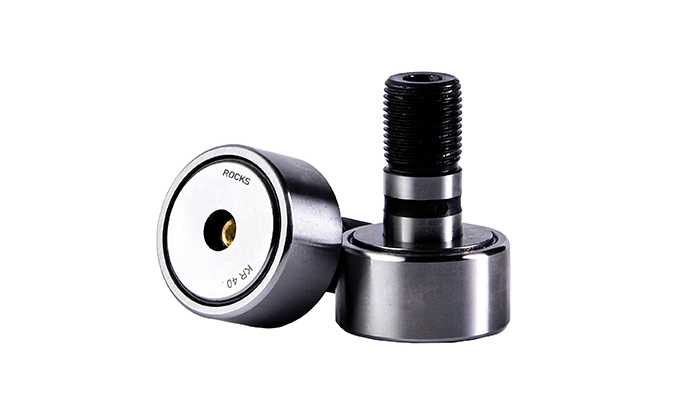

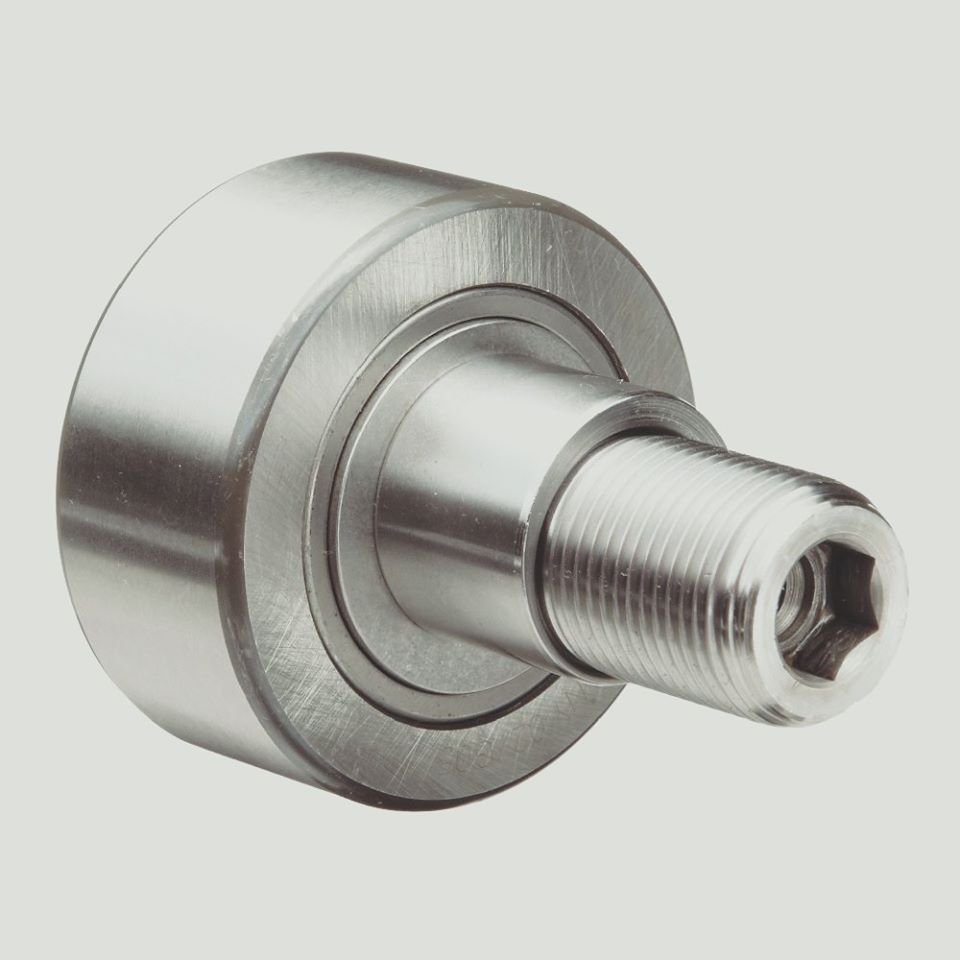

THB NUKR series Stud type cam followers are based on either needle or cylindrical roller bearings. Instead of an inner ring, they have a threaded solid stud (pin). This kind of cam followers are available in several designs and variants to meet the requirements of different applications. THB NUKR series Stud type cam followers are available: - with or without a cage - with different stud designs: ***a concentric seat ***an eccentric collar - with several sealing solutions - with the outer ring running surface profile: ***crowned as standard ***cylindrical (flat)
Product List

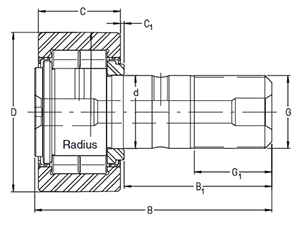

PART NUMBERTIRE (OD)
(D) (mm)
STUD (DIA)
(d) (mm)
TIRE (WIDTH)
(C) (mm)
LENGTH (B)
(mm)
WGT. (g)EFFECT. (DYN)
(CAP) (Cw)
(kN)
EFFECT. (STAT)
(CAP) (C0w)
(kN)
Fr (perm)
(kN)
F0r (perm)
(kN)
B1 (mm)GG1 (mm)C1 (mm)Ma (Nm)SPEED LIMIT
(GREASE) (rpm)
DYN. (CAP )
(C ) (kN
)
STAT. (CAP)
(C0) (kN)
NUKR 40 40 18 20 58 242 18.5 22.8 13.2 22.8 36.5 M 18x1.5 19 0.8 87 5500 24.8 31
NUKR 35 35 16 18 52 164 16 18.3 8.3 16.4 32.5 M 16x1.5 17 0.8 58 6500 23 27
NUKR 47 47 20 24 66 380 28 34.5 16.5 33 40.5 M 20x1.5 21 0.8 120 4200 39 50
NUKR 52 52 20 24 66 450 29 37.5 17.4 34.5 40.5 M 20x1.5 21 0.8 120 3400 43.5 60
NUKR 62 62 24 28 80 795 40.5 51 24.8 49.5 49.5 M 24x1.5 25 0.8 220 2600 59 79
NUKR 72 72 24 28 80 1020 45 61 33.5 61 49.5 M 24x1.5 25 0.8 220 2100 65 93
NUKR 80 80 30 35 100 1600 67 93 44.5 89 63 M 30x1.5 32 1 450 1800 95 133
NUKR 90 90 30 35 100 1960 77 110 72 110 63 M 30x1.5 32 1 450 1800 95 133
Total 1 Page 8 Records
