NKI, NKIB series
NKI, NKIB Series
NKI, NKIB Series Description:

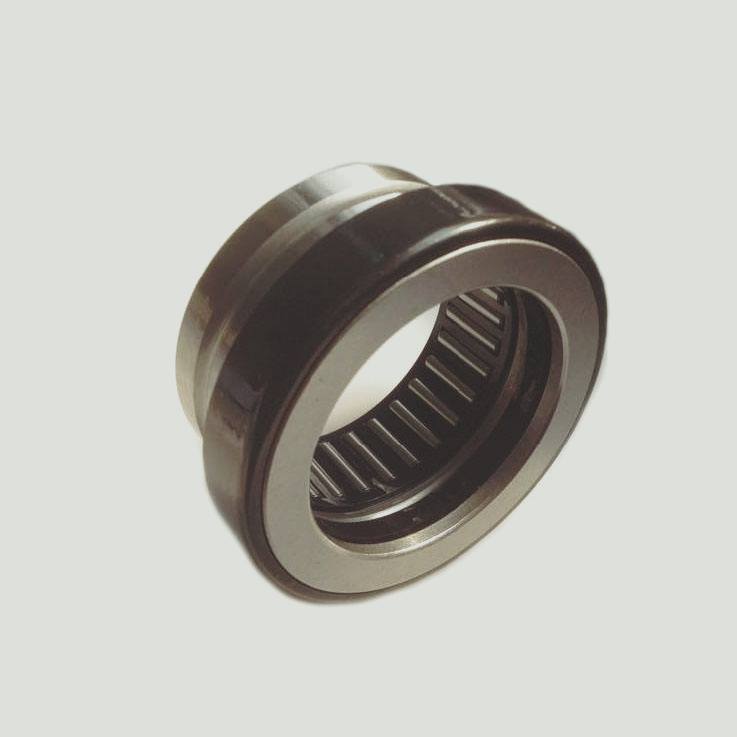

THB NK&NKS&RNA series Needle roller bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified roller/raceway profile prevents stress peaks to extend bearing service life. THB supplies needle roller bearings in many different designs, series and in a wide range of sizes, which make them appropriate for a wide variety of operating conditions and applications. Main applications: Automotive, construction and agriculture, inspection instruments, etc. Without inner ring is available.
Product List

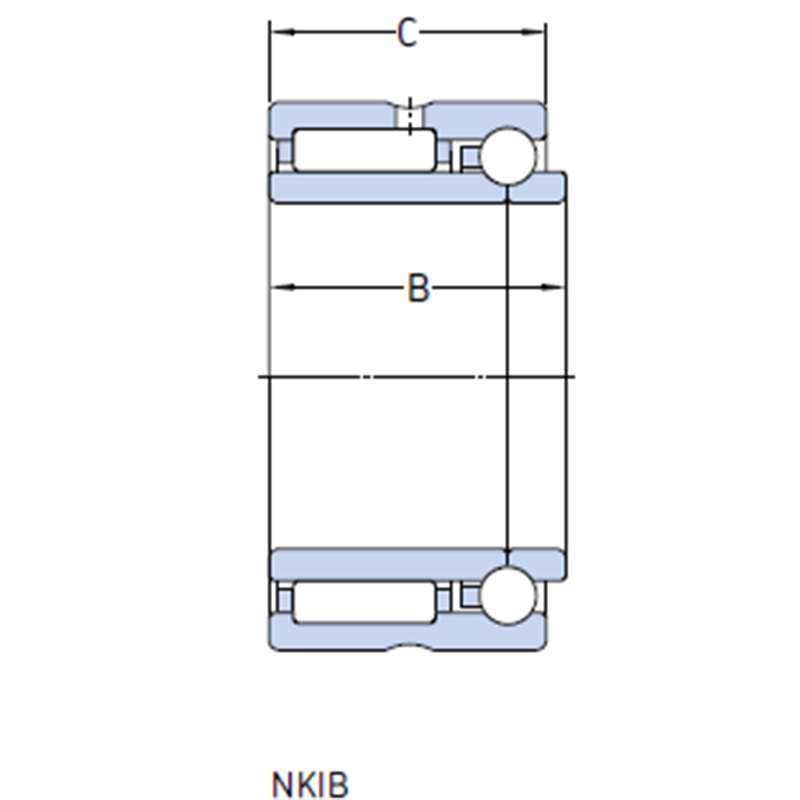

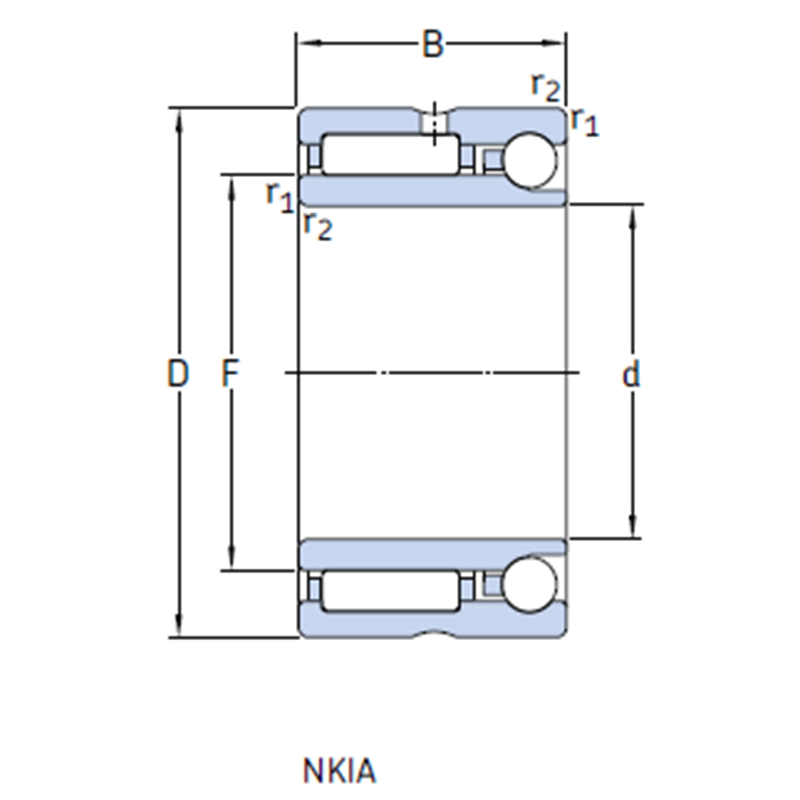

DesignationPrincipal dimensions
(d) (mm)
Principal dimensions
(D) (mm)
Principal dimensions
(B) (mm)
Principal dimensions
(C) (mm)
Basic load ratings
(radial) (dynamic) (C)
(KN)
Basic load ratings
(radial) (static) (C0)
(KN)
Basic load ratings
(axial) (dynamic) (C)
(KN)
Basic load ratings
(axial) (static) (C0)
(KN)
Fatigue load limit
(radial) (Pu) (KN)
Fatigue load limit
(axial) (Pu) (KN)
Reference speed
(r/min)
Limiting speed
(r/min)
Mass (kg)
NKIA 5901 12 24 16 7,93 9,46 2,03 1,88 1,12 0,08 22 000 26 000 0,04
NKIB 5901 12 24 17,5 16 7,93 9,46 2,03 1,88 1,12 0,08 22 000 26 000 0,043
NKIA 5902 15 28 18 10,98 14,99 2,22 2,32 1,79 0,1 19 000 22 000 0,05
NKIB 5902 15 28 20 18 10,98 14,99 2,22 2,32 1,79 0,1 19 000 22 000 0,052
NKIA 5903 17 30 18 11,17 15,97 2,2 2,69 1,92 0,11 18 000 20 000 0,056
NKIB 5903 17 30 20 18 11,17 15,97 2,2 2,69 1,92 0,11 18 000 20 000 0,058
NKIA 5904 20 37 23 21,17 27,44 3,71 4,13 3,28 0,17 15 000 17 000 0,1
NKIB 5904 20 37 25 23 21,17 27,44 3,71 4,13 3,28 0,17 15 000 17 000 0,11
NKIA 59/22 22 39 23 22,83 31,36 4,06 4,83 3,82 0,2 14 000 15 000 0,12
NKIB 59/22 22 39 25 23 22,83 31,36 4,06 4,83 3,82 0,2 14 000 15 000 0,12
Total 3 Page 30 Records 123
