IR, LR series
IR, LR Series
IR, LR Series Description:
Main applications: Automotive, construction and agriculture, inspection instruments, etc.
Product List
Part NumberPrincipal dimensions
(d) (mm)
Principal dimensions
(F) (mm)
Principal dimensions
(B) (mm)
Principal dimensions
(r,r1,2) (min.)
(mm)
Mass (kg)
IR 5x8x12 5 8 12 0,3 0,003
IR 5x8x16 5 8 16 0,3 0,004
IR 6x9x12 6 9 12 0,3 0,003
IR 6x9x16 6 9 16 0,3 0,004
IR 6x10x10 6 10 10 0,3 0,004

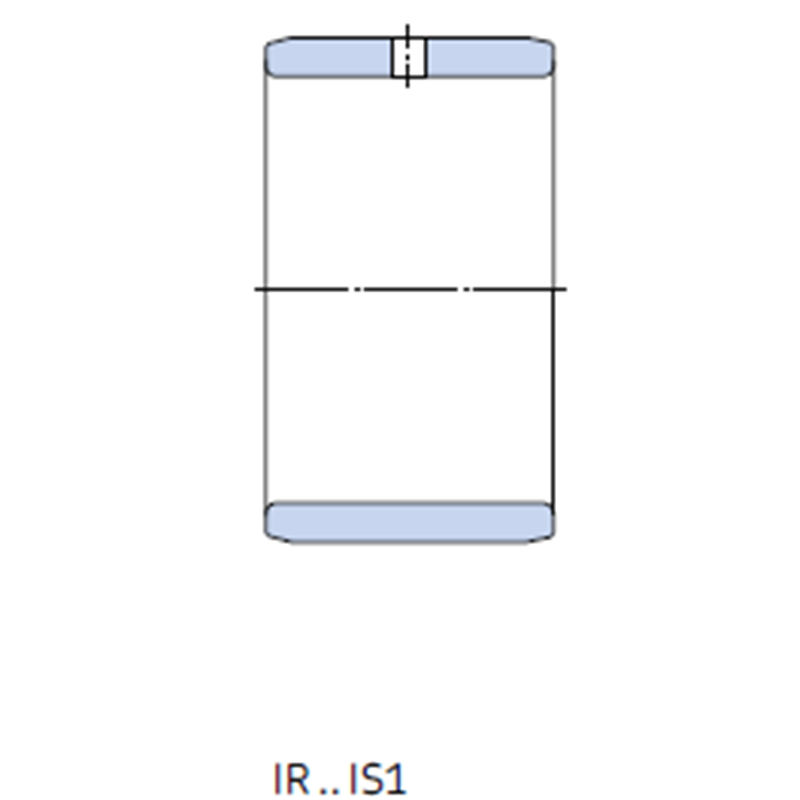

IR 6x10x10 IS1 6 10 10 0,3 0,004
IR 7x10x10.5 7 10 10,5 0,3 0,003

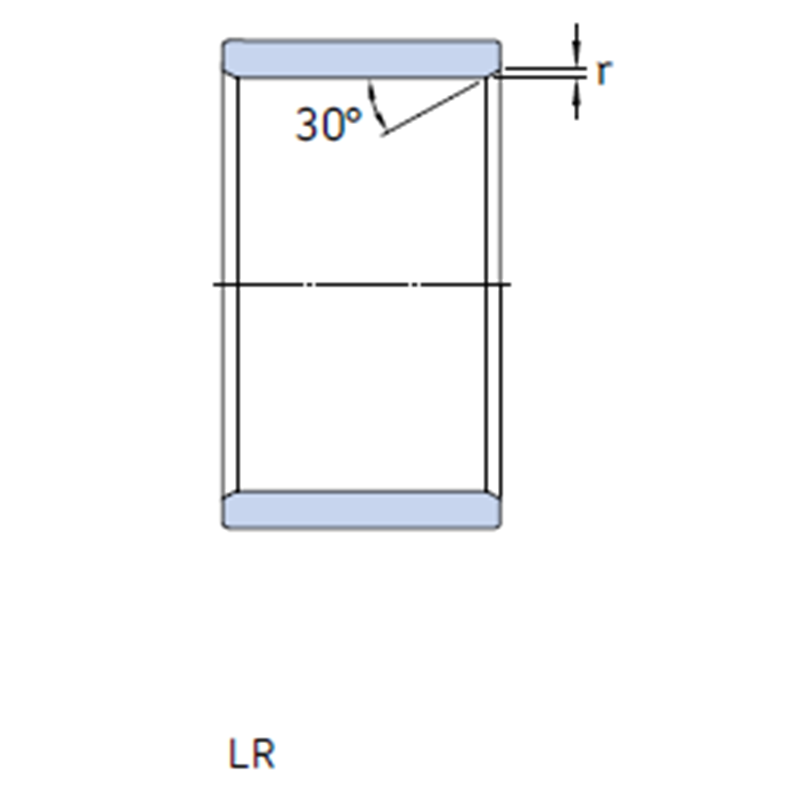

LR 7x10x10.5 7 10 10,5 0,3 0,003
IR 7x10x12 7 10 12 0,3 0,004
IR 7x10x16 7 10 16 0,3 0,005
Total 23 Page 228 Records 1234567891011 End
