HK, BK series
HK, BK Series

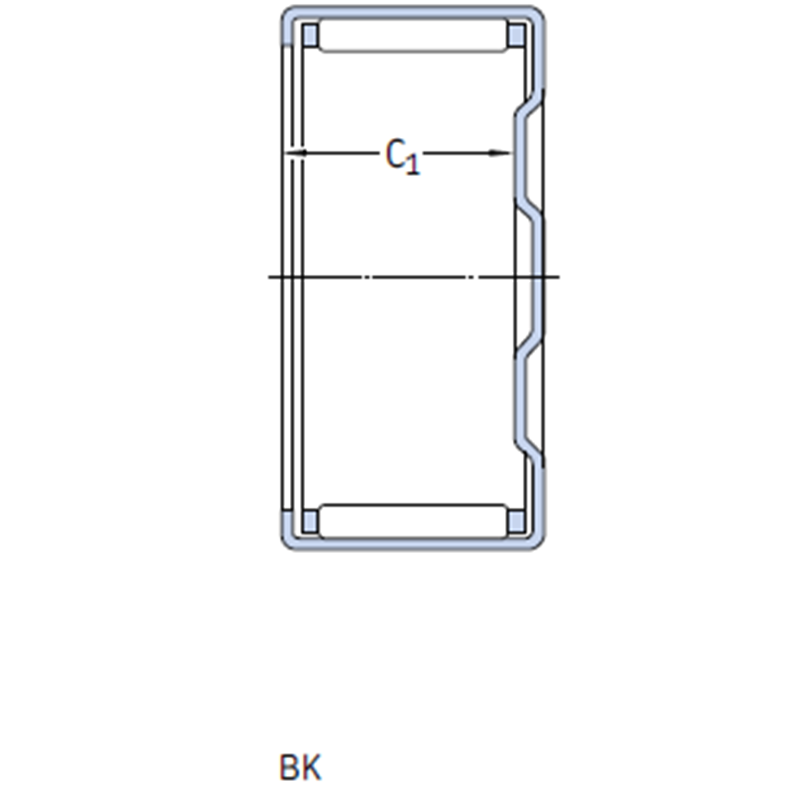

HK, BK Series Description:
THB HK&BK series Needle roller bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified roller/raceway profile prevents stress peaks to extend bearing service life. THB supplies needle roller bearings in many different designs, series and in a wide range of sizes, which make them appropriate for a wide variety of operating conditions and applications. Main applications: Automotive, construction and agriculture, inspection instruments, etc.
Product List
DesignationPrinciple dimensions
(Fw) (mm)
Principle dimensions
(Ew) (mm)
Principle dimensions
(U) (mm)
Basic load
ratings (dynamic)
(KN)
Basic load ratings
(Static) (C0) (KN)
Fatigue load
limit (Pu)
(KN)
Reference speed
(r/min)
Limiting speed
(r/min)
Mass(g)
HK0306 TN 3 6.5 6 1.169 0.845 0.084000 24000 26000 1
BK0306 TN 3 6.5 6 1.169 0.845 0.084 24000 26000 1
HK0408 4 8 8 1.672 1.315 0.133 22000 26000 2
BK0408 4 8 8 1.672 1.315 0.133 22000 26000 2.1
HK0509 5 9 9 2.261 1.997 0.209 22000 24000 2
BK0509 5 9 9 2.261 1.997 0.209 22000 24000 2.1
HK0606 6 10 6 1.634 1.238 0.125 20000 22000 1.5
HK0608 6 10 8 1.91 1.661 0.171 20000 22000 2.1
HK0609 6 10 9 2.67 2.592 0.271 20000 22000 2.5
BK0609 6 10 9 2.67 2.592 0.271 20000 22000 2.6
Total 18 Page 179 Records 1234567891011 End
