GE…AX Series Description:
Spherical plain bearings are manufactured in many kinds of materials and are designed to suit for kinds of application. THB Bearings provides a complete line of spherical bearings, inch and metric are both available. Application: heavy duty, off-highway vehicles, agricultural equipment, construction equipment, mining equipments, packaging and textile equipments, robotics. Requiring maintenance, sliding contact surface: steel/steel

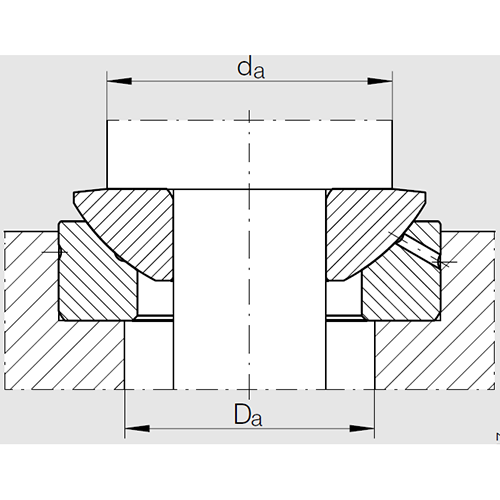

Product List
DesignationShaft diameter
(d) (mm)
Mass (kg)Dimensions (mm)
(d) (mm)
Dimensions (mm)
(D) (mm)
Dimensions (mm)
(T) (mm)
Dimensions (mm)
(d2) (mm)
Dimensions (mm)
(d3) (mm)
Dimensions (mm)
(D1) (mm)
Dimensions (mm)
(B) (mm)
Dimensions (mm)
(C) (mm)
Dimensions (mm)
(s) (mm)
Dimensions (mm)
(A) (mm)
Dimensions (α)
(degree)
Chamfer dimensions
(r1s) (mm)
Chamfer dimensions
(r2s) (mm)
Basic load ratings
in radial direction
( dyn) (N)
Basic load ratings
in radial direction
( staic) (N)
GE 10 AX 10 0.039 10–0.008 30–0.009 9.5 –0.4 27.5 21 16.5 7.9 –0.24 6 –0.24 7 3 10 0.6 0.2 23180 115900
GE 12 AX 12 0.071 12–0.008 35–0.011 13 –0.4 32 24 19.5 9.3 –0.24 9 –0.24 8 4 9 0.6 0.2 30780 153900
GE 15 AX 15 0.12 15–0.008 42–0.011 15 –0.4 38.9 29 24 10.7 –0.24 11 –0.24 10 5 7 0.6 0.2 49590 247950
GE 17 AX 17 0.16 17–0.008 47–0.011 16 –0.4 43.4 34 28 11.5 –0.24 11.5 –0.24 11 5 6 0.6 0.2 56240 281200
GE 20 AX 20 0.26 20–0.01 55–0.013 20 –0.4 50 40 33.5 14.3 –0.24 13 –0.24 12.5 6 6 1 0.3 71345 356250
GE 25 AX 25 0.39 25–0.01 62–0.013 22.5 –0.4 57.5 45 34.5 16 –0.24 17 –0.24 14 6 7 1 0.3 122550 612750
GE 30 AX 30 0.65 30–0.01 75–0.013 26 –0.4 69 56 44 18 –0.24 19.5 –0.24 17.5 8 6 1 0.3 160550 805600
GE 35 AX 35 1 35–0.012 90–0.015 28 –0.4 84 66 52 22 –0.24 20 –0.24 22 8 6 1 0.3 246050 1225500
GE 40 AX 40 1.7 40–0.012 105–0.015 32 –0.4 98 78 59 27 –0.24 22 –0.24 24.5 9 6 1 0.3 354350 1767000
GE 45 AX 45 2.5 45–0.012 120–0.015 36.5 –0.4 112 89 68 31 –0.24 25 –0.24 27.5 11 6 1 0.3 461700 2308500
Total 2 Page 20 Records 12
