Double Row Deep Groove Ball Bearings


Double Row Deep Groove Ball Bearings Description:
THB Double row deep groove ball bearings correspond in their structure and function to a pair of single row deep groove ball bearings. They are designed for high to very high speeds and are used where the load carrying capacity of single row deep groove ball bearings is not sufficient.
Double row deep groove ball bearings are wider than single row deep groove ball bearings of the same bore and outside diameter but have a significantly higher load carrying capacity.
Double row deep groove ball bearings are not sealed.
The bearings are open and are greased using a high quality grease.
Product List

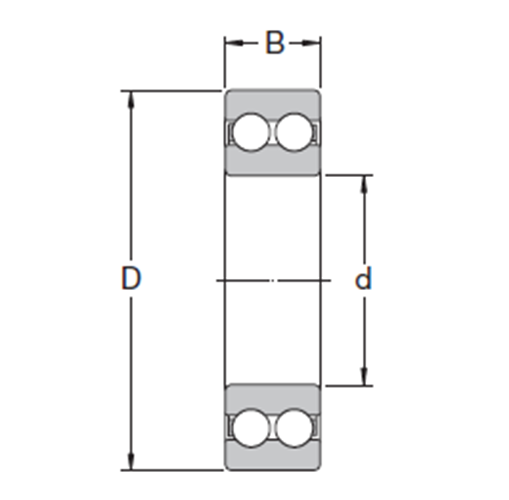

Designation | Principal dimensions (d) (mm) | Principal dimensions (D) (mm) | Principal dimensions (B) (mm) | Basic load ratings (dynamic) ( C) (KN) | Basic load ratings (static) (C0) | Fatigue load limit (Pu) | Speed ratings (Reference speed) (r/min) | Speed ratings (Limting speed) (r/min) | Mass (kg) |
4200 ATN9 | 10 | 30 | 14 | 9.045400 | 5.096 | 0.224 | 40 000 | 22 000 | 0.049 |
4201 ATN9 | 12 | 32 | 14 | 10.388 | 6.076 | 0.26 | 36 000 | 20 000 | 0.052 |
4301 ATN9 | 12 | 37 | 17 | 12.74 | 7.644 | 0.325 | 34 000 | 18 000 | 0.092 |
4202 ATN9 | 15 | 35 | 14 | 11.662 | 7.35 | 0.32 | 32 000 | 17 000 | 0.059 |
4302 ATN9 | 15 | 42 | 17 | 14.504 | 9.31 | 0.405 | 28 000 | 15 000 | 0.12 |
4203 ATN9 | 17 | 40 | 16 | 14.504 | 9.31 | 0.405 | 28 000 | 15 000 | 0.09 |
4303 ATN9 | 17 | 47 | 19 | 19.11 | 12.936 | 0.560000 | 24 000 | 13 000 | 0.16 |
4204 ATN9 | 20 | 47 | 18 | 17.444 | 12.25 | 0.53 | 24 000 | 13 000 | 0.14 |
4304 ATN9 | 20 | 52 | 21 | 22.932 | 15.68 | 0.68 | 22 000 | 12 000 | 0.21 |
4205 ATN9 | 25 | 52 | 18 | 18.62 | 14.308 | 0.62 | 20 000 | 11 000 | 0.17 |
