AH3200  series
AH3200 Series
AH3200 Series Description:

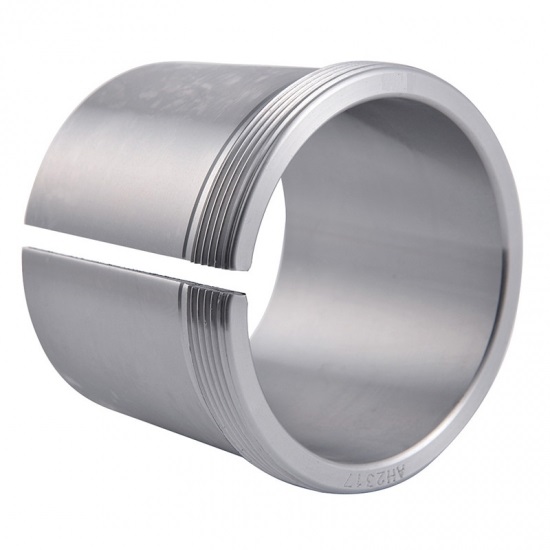

THB AH3200 series Withdrawal sleeves can be used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. The sleeve is pressed into the bore of the bearing inner ring, located on the shaft by a nut or an end plate. KM or HM lock nuts with appropriate locking devices are suitable.

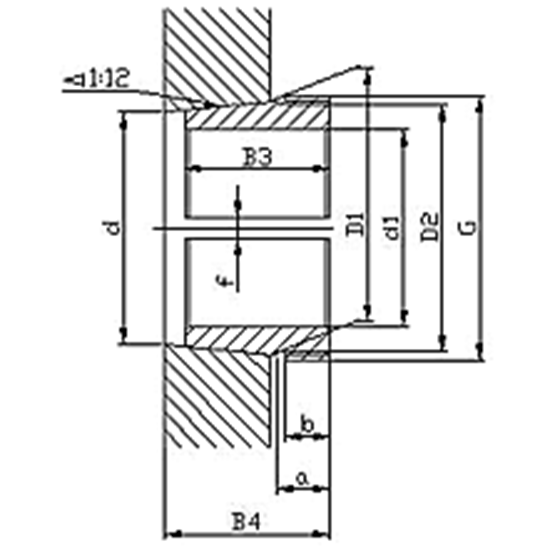

Product List
Adapter SleeveDimensions (mm)
(d1)
Dimensions (mm)
(d)
Dimensions (mm)
(B2)
Dimensions (mm)
(B4)
Dimensions (mm)
(D1)
Dimensions (mm)
(D2)
Dimensions (mm)
(a)
Dimensions (mm)
(b)
Dimensions (mm)
(f)
Dimensions (mm)
(G)
Weight (kg)Locknut
AH3218 85 90 63 67 94.5 94 13 10 3 M100x2 0.576 KM20
AH3219 90 95 67 71 99.75 99 14 11 4 M105x2 0.65 KM21
AH3220 95 100 73 77 105.25 104.5 14 11 4 M110x2 0.767 KM22
AH3222 105 110 82 86 116 115.5 14 11 4 M125x2 0.88 KM25
AH3224 115 120 90 94 126.5 126 16 13 4 M135x2 1.11 KM27
AH3226 125 130 98 102 137 136.5 18 15 4 M145x2 1.58 KM29
AH3228 135 140 104 109 147.58 147 18 15 4 M155x3 1.84 KM31
AH3230 145 150 114 119 158.25 157.5 20 17 4 M165x3 2.22 KM33
AH3232 150 160 124 130 168.92 167 23 20 5 M180x3 4.08 KM36
AH3234 160 170 134 140 179.42 178 27 24 5 M190x3 4.8 KM38
