AH3000 Series Description:

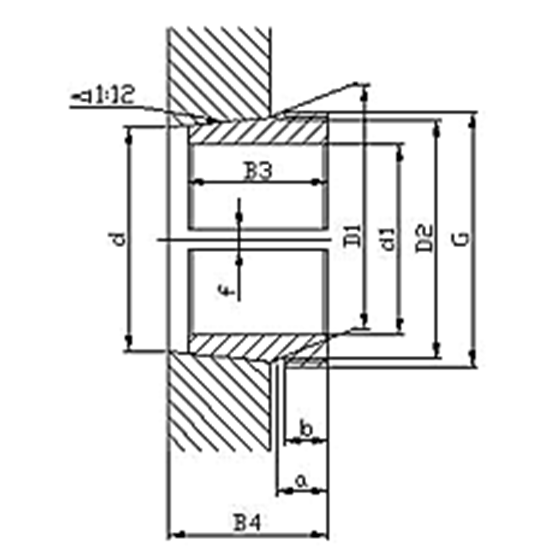

THB AH3000 series Withdrawal sleeves can be used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. The sleeve is pressed into the bore of the bearing inner ring, located on the shaft by a nut or an end plate. KM or HM lock nuts with appropriate locking devices are suitable.
Product List
Adapter SleeveDimensions (mm)
(d1)
Dimensions (mm)
(d)
Dimensions (mm)
(B2)
Dimensions (mm)
(B4)
Dimensions (mm)
(D1)
Dimensions (mm)
(D2)
Dimensions (mm)
(a)
Dimensions (mm)
(b)
Dimensions (mm)
(f)
Dimensions (mm)
(G)
Weight (kg)Locknut
AH3120 95 100 64 68 104.5 104 14 11 4 M110x2 0.65 KM22
AH3122 105 110 68 72 114.83 114 14 11 4 M120x2 0.76 KM24
AH3124 115 120 75 79 125.33 124 15 12 4 M130x2 0.95 KM26
AH3126 125 130 78 82 135.58 135 15 12 4 M140x2 1.08 KM28
AH3128 135 140 83 88 145.92 145 17 14 4 M150x2 1.28 KM30
AH3130 145 150 96 101 156.92 156 18 15 4 M165x3 1.79 KM33
AH3132 150 160 103 108 167.42 166 19 16 5 M180x3 2.87 KM36
AH3134 160 170 104 109 177 176 19 16 5 M190x3 3.04 KM38
AH3136 170 180 116 122 188.33 187 22 19 5 M200x3 3.76 KM40
AH3138 180 190 125 131 198.75 197 26 20 5 T210x4 4.89 HM42
