7602, 7603 series
7602, 7603 Series
7602, 7603 Series Description:

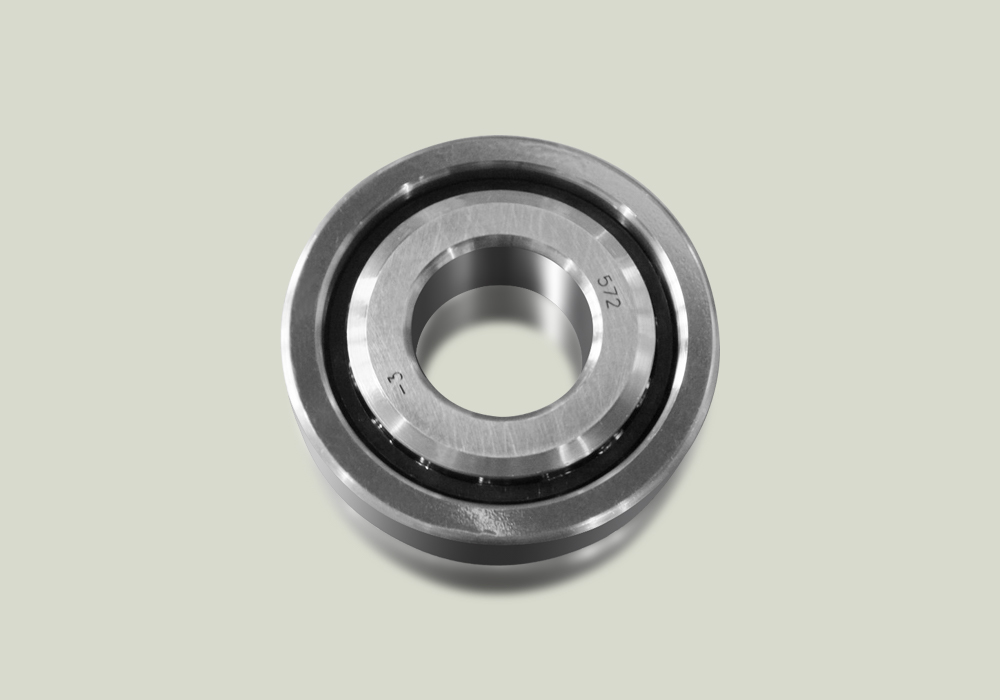

THB 7602&7603 series Ball screw support bearings have been improved to exceed new industrial demands for high precision and high speed requirements.
Product List

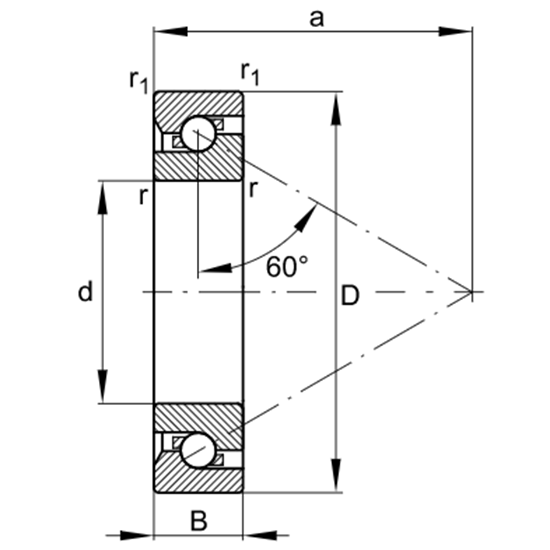

DesignationShaft (Diameter)
(mm)
Mass(g)Dimensions (d)
(mm)
Dimensions (D)
(mm)
Dimensions (B)
(mm)
Dimensions (D1)
(mm)
Dimensions (d1)
(mm)
Dimensions® (min)
(mm)
Dimensions (r1)
(min) (mm)
Limiting speed
(Grease) (rpm)
760204 20 132 20 47 14 34 34 1.0 0.6 6000
760204X2 20 135 20 47 15 34 34 1.0 0.6 6000
760304 20 137 20 52 15 34 34 1.0 0.6 6000
760205 25 248 25 52 15 45 45 1.1 1.0 4500
760305 25 257 25 62 17 45 45 1.1 1.0 4500
760305X2 25 252 25 62 15 45 45 1.0 0.6 4500
760206 30 220 30 62 16 47 47 1.1 1.0 4300
760206X2 30 224 30 62 15 47 47 1.0 0.6 4300
760306 30 232 30 72 19 47 47 1.1 1.0 4300
760207 35 300 35 72 17 55 55 1.5 1.1 3600
Total 2 Page 15 Records 12
