6XXX series, with filling slots and snap rings
6XXX Series, With Filling Slots And Snap Rings
6XXX Series, With Filling Slots And Snap Rings Description:

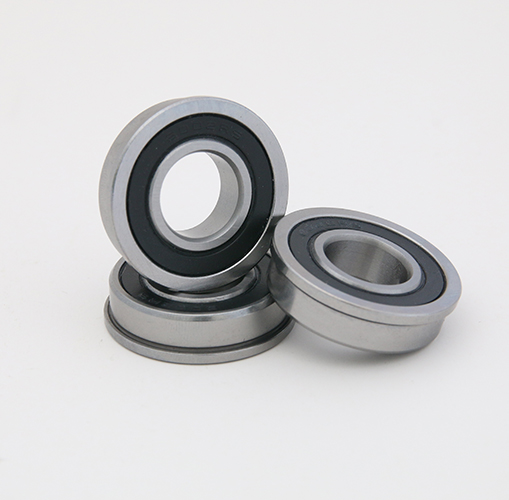

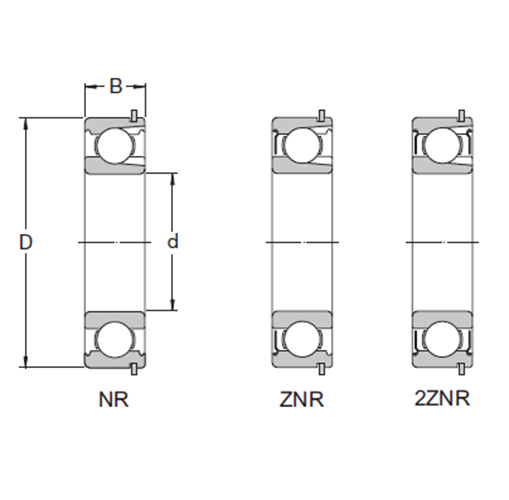

THB Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. Single and double rows are available. Open, seals(suffix 2RS) and shields(suffix 2Z) type are available. Open bearings are suitable for high to very high speeds. Suffix N means snap ring groove in the outer ring. Suffix NR means Snap ring groove in the outer ring with snap ring
Product List
Designations (Bearing
open)
Designations (with shields
on one side)
Designations (two
sides)
Principal dimensions
(d) (mm)
Principal dimensions
(D) (mm)
Principal dimensions
(B) (mm)
Basic load ratings
(dynamic) (C) (KN)
Basic load ratings
(static) (C0) (KN)
Fatigue load
limit (Pu)
Speed ratings
(Reference speed)
(r/min)
Speed ratings
(Limting speed)
(r/min)
Mass (kg)Designations (Snap
ring)
305NR 305-ZNR 305-2ZNR 25 62 17 20.286 14.112 1 20000 13000 0.24 SP62
206NR 206-ZNR 206-2ZNR 30 62 16 20.1978 15.2586 0.735 20000 12000 0.21 SP62
306NR 306-ZNR 306-2ZNR 30 72 19 25.7544 18.3456 0.88 18000 11000 0.37 SP72
207NR 207-ZNR 207-2ZNR 35 72 17 26.1954 20.1096 0.965 17000 11000 0.31 SP72
307NR 307-ZNR 307-2ZNR 35 80 21 34.4862 25.137 1.2 16000 10000 0.48 SP80
208NR 208-ZNR 208-2ZNR 40 80 18 29.6352 23.373 1.12 15000 9500 0.39 SP80
308NR 308-ZNR 308-2ZNR 40 90 23 41.2776 31.752 1.53 14000 9000 0.64 SP90
209NR 209-ZNR 209-2ZNR 45 85 19 34.9272 28.665 1.37 14000 9000 0.44 SP85
309NR 309-ZNR 309-2ZNR 45 100 25 52.3908 41.013 1.96 13000 8000 0.88 SP100
210NR 210-ZNR 210-2ZNR 50 90 20 34.4862 30.429 1.46 13000 8000 0.5 SP90
Total 3 Page 24 Records 123
