6XXX series, with filling slots
6XXX Series, With Filling Slots
6XXX Series, With Filling Slots Description:
THB Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. Single and double rows are available. Open, seals(suffix 2RS) and shields(suffix 2Z) type are available. Open bearings are suitable for high to very high speeds.
Product List
Designations (Bearing
open)
Designations (with shields
on one side)
Designations (two
sides)

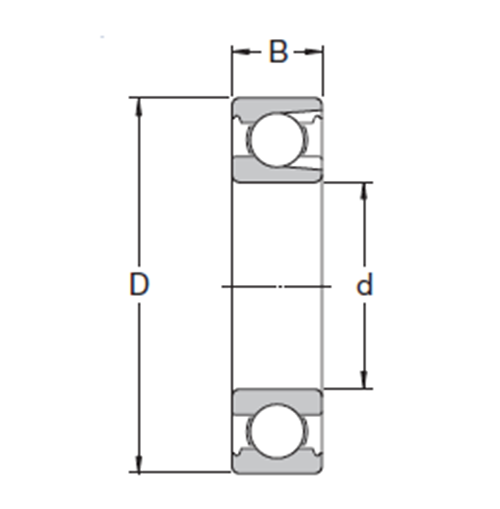

Principal dimensions
(d) (mm)
Principal dimensions
(D) (mm)
Principal dimensions
(B) (mm)
Basic load ratings
(dynamic) (C) (KN)
Basic load ratings
(static) (C0) (KN)
Fatigue load
limit (Pu)
Speed ratings
(Reference speed)
(r/min)
Speed ratings
(Limting speed)
(r/min)
Mass (kg)
305 305-Z 305-2Z 25 62 17 20.1978 13.7592 0.67 20000 13000 0.24
206 206-Z 206-2Z 30 62 16 20.1978 15.2586 0.735 20000 12000 0.21
306 306-Z 306-2Z 30 72 19 25.7544 18.3456 0.88 18000 11000 0.37
207 207-Z 207-2Z 35 72 17 26.1954 20.1096 0.965 17000 11000 0.31
307 307-Z 307-2Z 35 80 21 34.4862 25.137 1.2 16000 10000 0.48
208 208-Z 208-2Z 40 80 18 29.6352 23.373 1.12 15000 9500 0.39
308 308-Z 308-2Z 40 90 23 41.2776 31.752 1.53 14000 9000 0.64
209 209-Z 209-2Z 45 85 19 34.9272 28.665 1.37 14000 9000 0.44
309 309-Z 309-2Z 45 100 25 52.3908 41.013 1.96 13000 8000 0.88
210 210-Z 210-2Z 50 90 20 34.4862 30.429 1.46 13000 8000 0.5
Total 3 Page 29 Records 123
