3XXX series, open type
3XXX Series, Open Type
3XXX Series, Open Type Description:

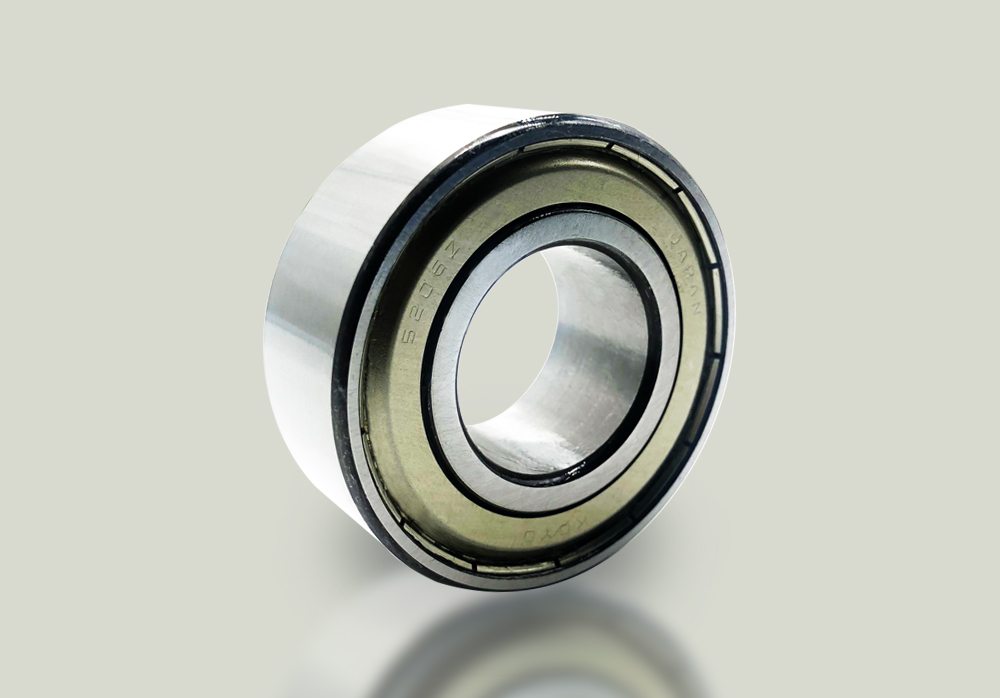

THB Double row angular contact ball bearings design corresponds to 2 single row angular contact ball bearings arranged back-to-back. Features: less axial space, accommodates radial as well as axial loads in either direction, accommodates tilting moments, stiff bearing arrangement. Cages: nylon, steel
Product List
Designations (Bearing
with metal
cage)
Designations (polyamide
cage)

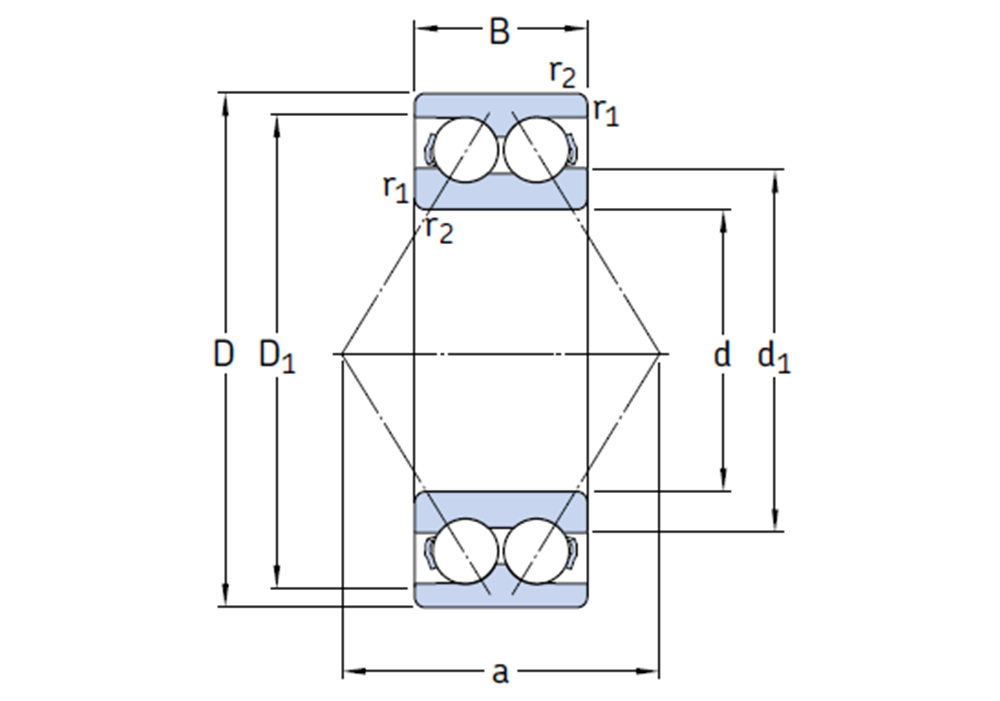

Principal dimensions
(d) (mm)
Principal dimensions
(D) (mm)
Principal dimensions
(B)
Basic load ratings
(dynamic) (C) (kn)
Basic load ratings
(static) (C0) (kn)
Fatigue load
limit (Pu)
Speed ratings
(Reference speed)
(r/min)
Speed ratings
(Limting speed)
(r/min)
Mass (kg)
3200 ATN9 10 30 14 7.4578 4.214 0,183 22 000 24 000 0,051
3201 ATN9 12 32 15,9 9.898 5.488 0,24 20 000 22 000 0,058
3202 ATN9 15 35 15,9 10.976 6.664 0,285 17 000 18 000 0,066
3302 ATN9 15 42 19 14.798 9.114000 0,4 15 000 16 000 0,13
3203 ATN9 17 40 17,5 14.014 8.624000 0,365 15 000 16 000 0,096
3303 ATN9 17 47 22,2 21.168 12.446 0,54 14 000 14 000 0,18
3204 A 3204 ATN9 20 47 20,6 19.6 11.76 0,51 14 000 14 000 0,16
3304 A 3304 ATN9 20 52 22,2 23.128 14.308 0,62 13 000 13 000 0,22
3205 A 3205 ATN9 25 52 20,6 21.168 14.014 0,6 12 000 12 000 0,18
3305 A 3305 ATN9 25 62 25,4 31.36 19.992 0,865 11 000 11 000 0,35
Total 6 Page 52 Records 123456
