3XXX series, closed type
3XXX Series, Closed Type

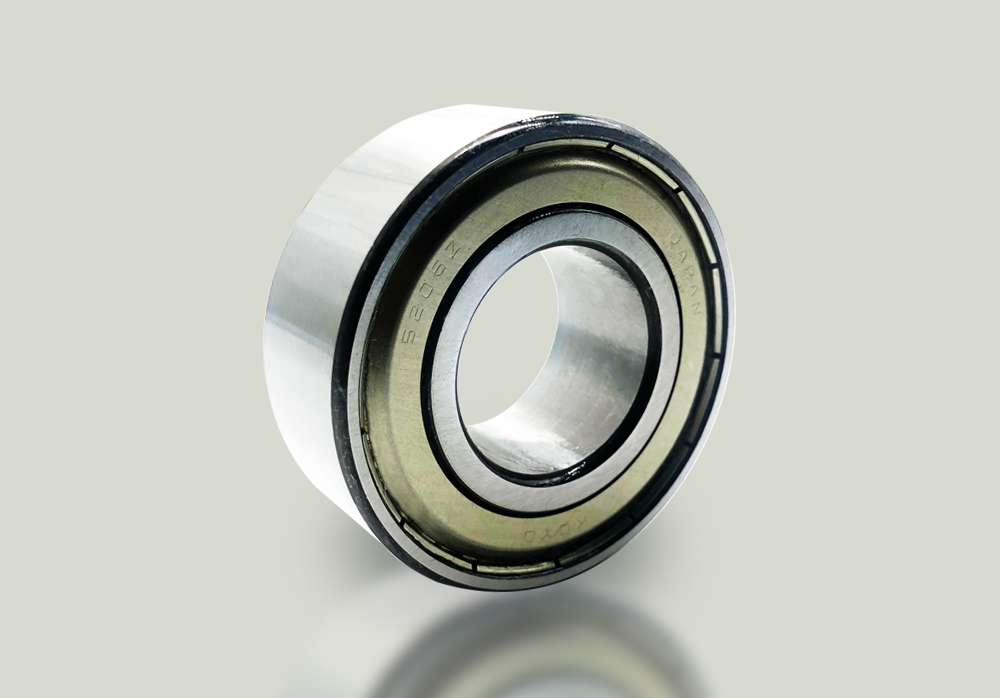

3XXX Series, Closed Type Description:
THB Double row angular contact ball bearings design corresponds to 2 single row angular contact ball bearings arranged back-to-back. Features: less axial space, accommodates radial as well as axial loads in either direction, accommodates tilting moments, stiff bearing arrangement.
Product List
Designations (Bearing
with shields)

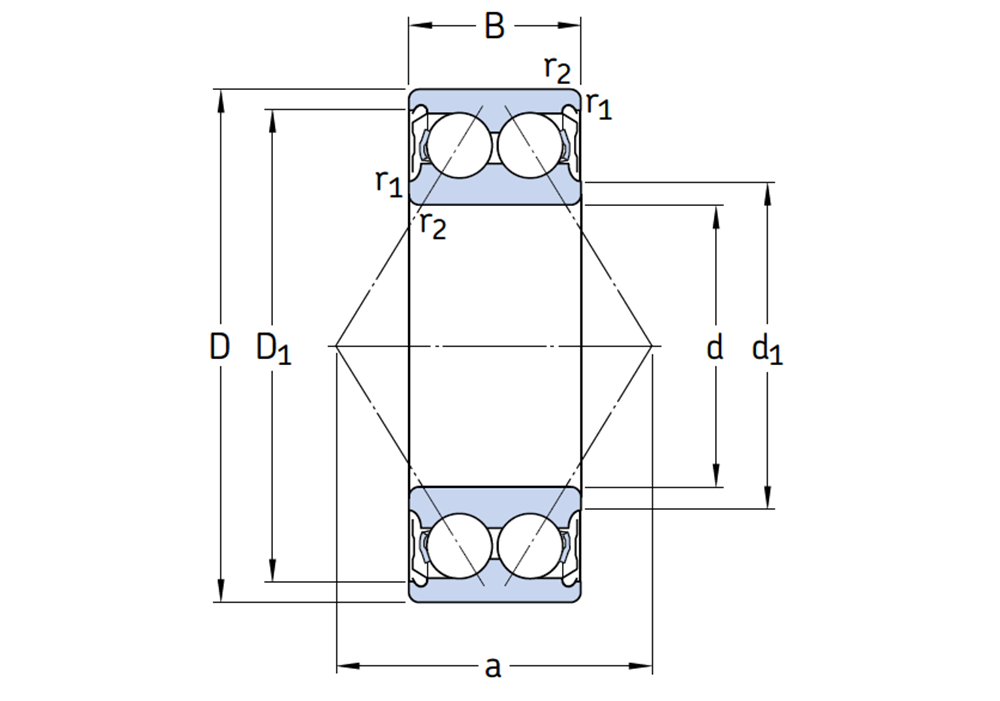

Designations (seals)Principal dimensions
(d) (mm)
Principal dimensions
(D) (mm)
Principal dimensions
(B) (mm)
Basic load ratings
(dynamic) (C) (kn)
Basic load ratings
(static) (C0) (kn)
Fatigue load
limit (Pu)
(kn)
Speed ratings
(Reference speed)
(r/min)
Speed ratings
(Limting speed)
(r/min)
Mass (kg)
3200 A-2Z 3200 A-2RS1 10 30 14,3 7.3056 4.128 0,183 24 000 17 000 0,051
3201 A-2Z 3201 A-2RS1 12 32 15,9 9.696 5.376 0,24 22 000 15 000 0,058
3202 A-2Z 3202 A-2RS1 15 35 15,9 10.752 6.528 0,285 18 000 14 000 0,066
3302 A-2Z 3302 A-2RS1 15 42 19 14.496 8.928 0,4 16 000 12 000 0,13
3203 A-2Z 3203 A-2RS1 17 40 17,5 13.728 8.448 0,365 16 000 12 000 0,1
3303 A-2Z 3303 A-2RS1 17 47 22,2 20.736 12.192 0,54 14 000 11 000 0,18
E2.3204 A-2Z 20 47 20,6 19.2 11.52 0,51 14 000 0,16
3204 A-2Z 3204 A-2RS1 20 47 20,6 19.2 11.52 0,51 14 000 10 000 0,16
E2.3304 A-2Z 20 52 22,2 22.656 14.016 0,62 13 000 0,22
3304 A-2Z 3304 A-2RS 20 52 22,2 22.656 14.016 0,62 13 000 9 000 0,22
Total 5 Page 48 Records 12345
