112XX Series Description:

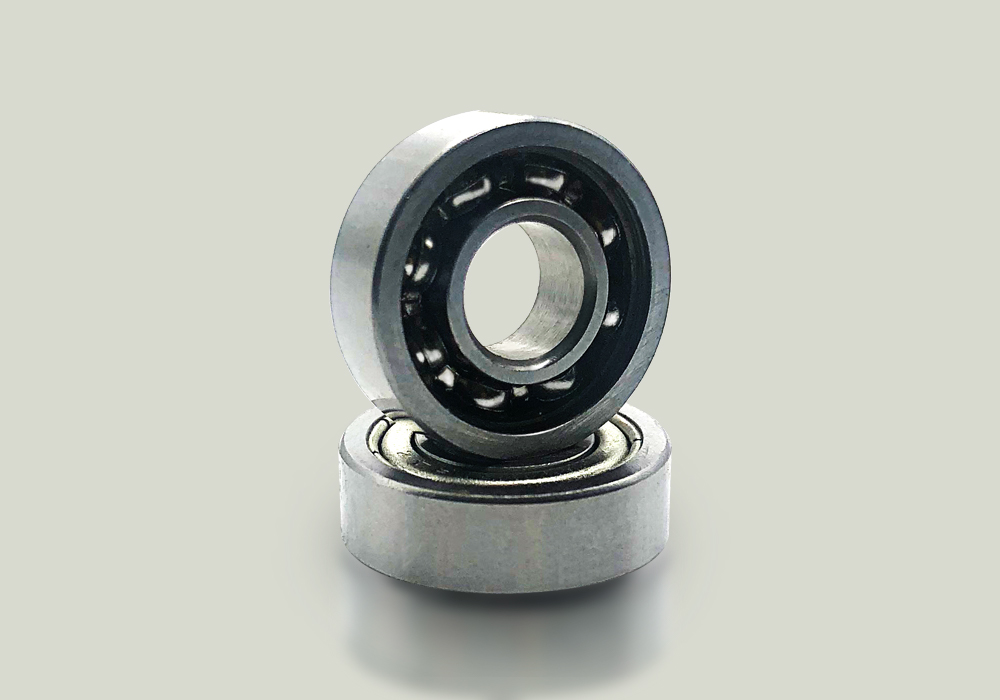

THB Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. Available with open or sealed version. Available with cylindrical bore and tapered bore. Available with steel cage, nylon cage, brass cage and ceramic cage. Rings and balls material: GCr15, silicon nitride, zirconia or silicon carbide, stainless steel.
Product List
Designations Bearing
with cylindrical
bore

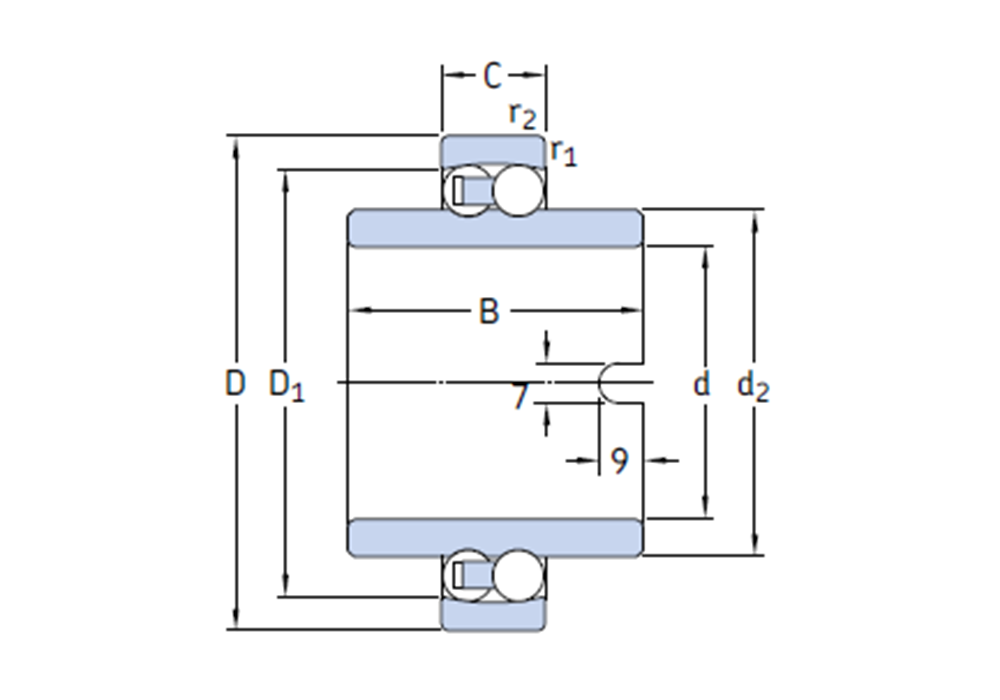

Principal dimensions
(d) (mm)
Principal dimensions
(D) (mm)
Principal dimensions
(C )
(mm)
Principal dimensions
(B) (mm)
Principal dimensions
(r1,2min.) (mm)
Basic load ratings
(dynamic ) (C)
(KN)
Basic load ratings
(static ) (C0)
(KN)
Fatigue load
limit (Pu)
Speed ratings
(Limiting speed)
(r/min)
Mass (kg
)
11204 ETN9 20 47 14 41 40 12.192 3.264 0,18 9 000 0,18
11205 ETN9 25 52 15 45,6 44 13.728 3.84 0,21 8 000 0,22
11206 TN9 30 62 16 53,2 48 14.976 4.464 0,24 6 700 0,35
11207 TN9 35 72 17 60,7 52 18.24 5.76 0,305 5 600 0,54
11208 TN9 40 80 18 68,8 56 18.24 6.288 0,335 5 000 0,72
11209 TN9 45 85 19 73,7 58 21.984 7.488 0,4 4 500 0,77
11210 TN9 50 90 20 78,7 58 25.44 8.784 0,475 4 300 0,85
11212 TN9 60 110 22 97,5 62 29.952 11.712 0,62 3 400 1,15
Total 1 Page 8 Records
