6XXX series, with snap rings and shields
6XXX Series, With Snap Rings And Shields
6XXX Series, With Snap Rings And Shields Description:
THB Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. Single and double rows are available. Open, seals(suffix 2RS) and shields(suffix 2Z) type are available. Open bearings are suitable for high to very high speeds. Suffix N means snap ring groove in the outer ring. Suffix NR means Snap ring groove in the outer ring with snap ring
Product List

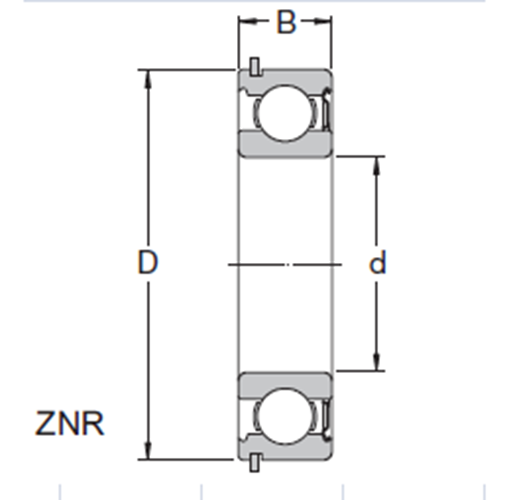

Designations (Bearing with
one shield and
snap)

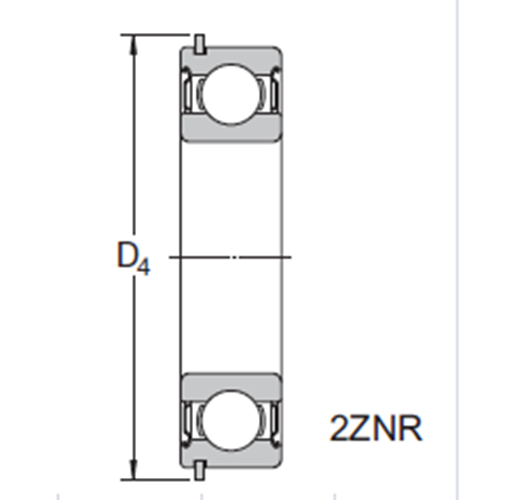

Designations (two
shields and
snap)
Principal dimensions
(d) (mm)
Principal dimensions
(D) (mm)
Principal dimensions
(B) (mm)
Basic load ratings
(dynamic) (C) (KN)
Basic load ratings
(static) (C0) (KN)
Fatigue load
limit (Pu)
Speed ratings
(Reference speed)
(r/min)
Speed ratings
(Limting speed)
(r/min)
Mass (kg)
6200-ZNR 6200-2ZNR 10 30 9 5.292 2.3128 0.1 6 000 34 000 0.032
6201-ZNR 6201-2ZNR 12 32 10 66 2.7342 0.132 50000 32000 0.037
6202-ZNR 6202-2ZNR 15 35 11 7.10892 3.3075 6 43000 28000 0.045
6203-ZNR 6203-2ZNR 17 40 12 8.7759 4.1895 0.2 38000 24000 65
6303-ZNR 6303-2ZNR 17 47 14 66 5.7771 0.275 34000 22000 0.12
6004-ZNR 6004-2ZNR 20 42 12 8.379 4.41 0.212 38000 24000 69
6204-ZNR 6204-2ZNR 20 47 14 11.907 5.7771 0.28 32000 20000 0.11
6304-ZNR 6304-2ZNR 20 52 15 6 66 0.335 30000 19000 0.14
6005-ZNR 6005-2ZNR 25 47 12 10.4958 5.7771 0.275 32000 20000 0.08
6205-ZNR 6205-2ZNR 25 52 15 6 66 0.335 28000 18000 0.13
Total 3 Page 29 Records 123
